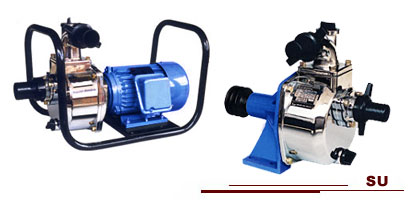

Products Showroom - SU Series Self-Priming Pump

SU series water pump is the self-priming centrifugal pump. There is a valve at the nozzle of pump, so the question of leakage can be worked out before running.
This series is especially used for agriculture, it consists of pump body and drive motor. Both of them are independent, they are connected by the belt-drive wheel, through which to drive the impeller to run.
This series can also match with motor, diesel engine and gasoline engine.
It has the advantages of compact construction smooth running and easy maintenance.


	GP Series Self-Priming Pump PS Series Self-Priming Pump DBZ Series Self-Priming Pump SU Series Self-Priming Pump

	Pheripheral Pump Series Centrifugal Pump Series Automatic Pump Series JET Pump Series Self-Priming Pump Series

Technical Data

Model	Output		TOTAL HEAD	MAX. FLOW	SPEED R.P.M	CONNECTION DIA (MM)	SUCTION LIFT
220V 50Hz	KW	HP	TOTAL HEAD	MAX. FLOW	SPEED R.P.M	CONNECTION DIA (MM)	SUCTION LIFT
SU25	2	1.5	29	96	4000	25(1")	8
SU25	3	2.2	45	120	5000	25(1")	8
SU40	3	2.2	40	3.5	3600	40(1.5")	8
SU40	5	3.7	50	350	4000	40(1.5")	8
SU50	5	3.7	40	450	3600	50(2")	8
SU50	7.5	5.5	50	500	4000	50(2")	8
SU80	7.5	5.5	30	900	3600	80(3")	8
SU80	10	7.5	38	1000	4000	80(3")	8

* Above-mentioned data come from the testing under single phase 220V/50Hz, 2850 r/min.
The following are available: Three phase; Single phase dual-voltage 110V/220V/50Hz;
and single Phase uni-voltage 220V; 240V; or 127V, 110V, 115V.
